Description

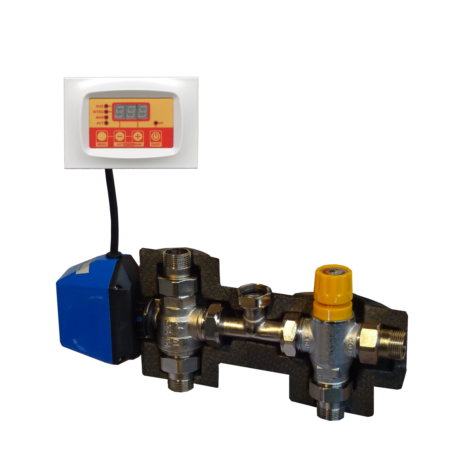

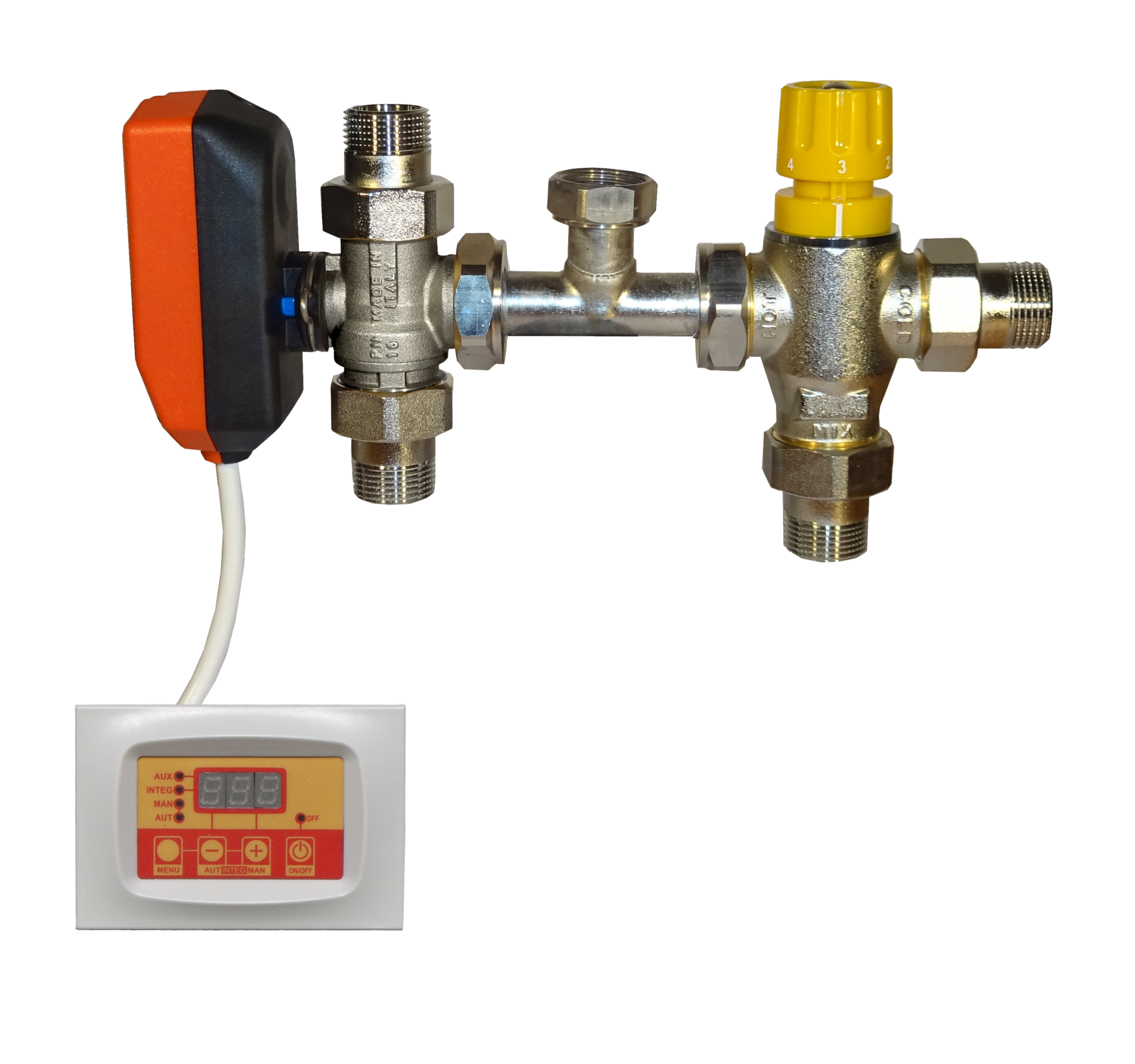

Compact unit that allows the best management of hot water coming from the solar panel for the sanitary system.
In the event of a low temperature of the water from the solar panel, the unit activates the boiler for integration, so as to always send the user hot water at the desired temperature.
If the temperature is too high or if there is a lack of cold water at the inlet, the unit immediately closes the hot water passage to avoid dangerous burns.

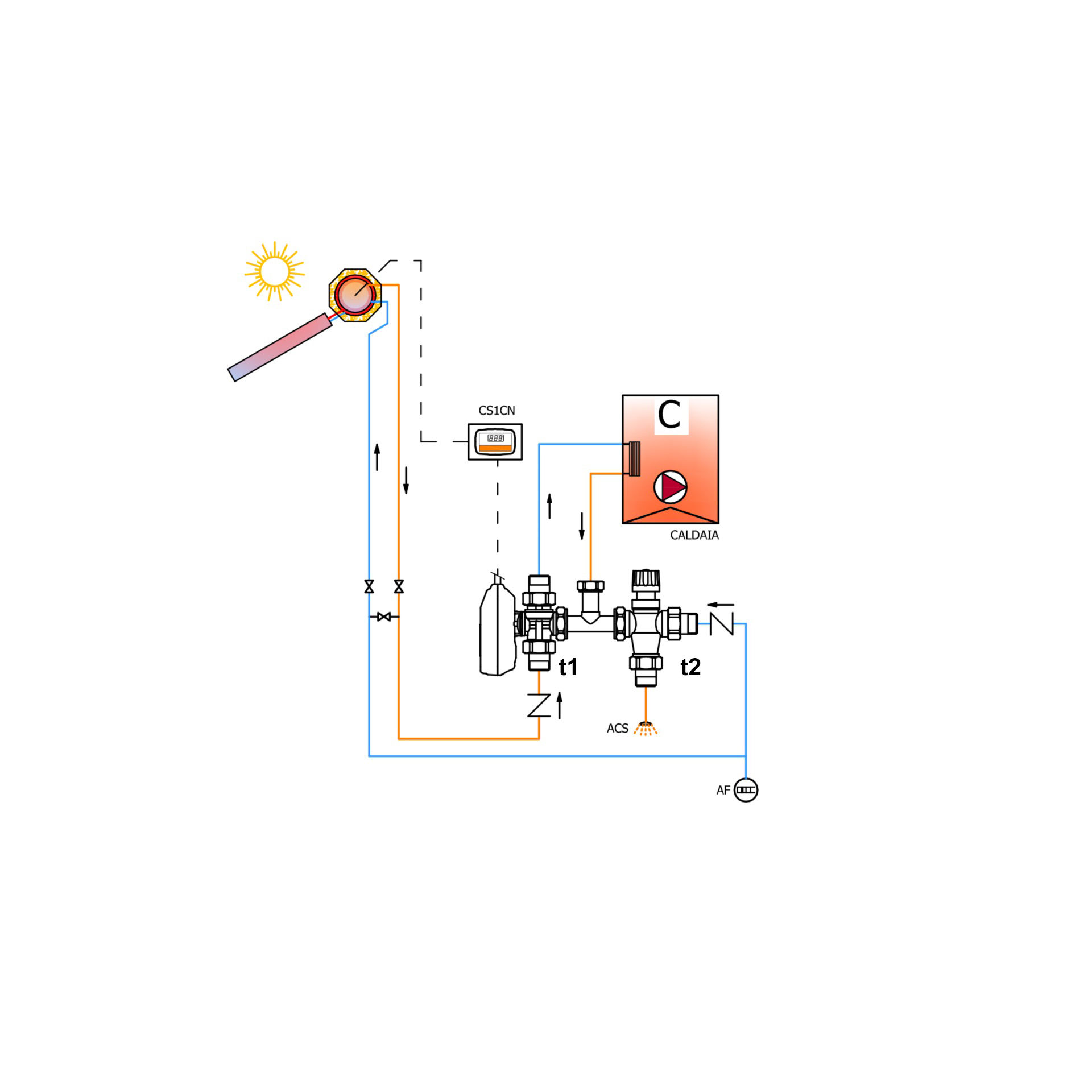

The water coming from the solar panel is diverted towards the boiler or the sanitary network depending on whether its temperature (t1) is lower or higher than 60 °C: this value can be changed (ex. to 50 °C) by operating on the electronic control unit menu.
By turning the knob on the thermostatic mixer, the outlet temperature of domestic hot water is adjusted to the desired value.
Once set, it is possible to lock the mixer by turning the grub screw on the knob, preventing accidental manipulations.
Technical Data
THREE WAYS VALVE:
Valve body : brass UNI EN 12165 CW617N nickel plated
Rod : brass UNI EN 12164 CW614N with double EPDM O-RING and PTFE seal
Ball : brass UNI EN 12165 CW617N nickel-chromium plated
Seals : PTFE with EPDM O-RING
Inlet: 3/4" pipe union
Outlet: 3/4" pipe union
Max. operating pressure : 10 bar
Fluid temperature range : 0 + 100 °C
Kv : 10,3 m3/h (straight way) 3,5 m3/h (later way)
THERMOSTATIC VALVE:
Valve body : brass UNI EN 12165 CW617N nickel plated
Shutter and inner parts : brass UNI EN 12164 CW614N
O-RING : EPDM
Temperature sensor : expansible wax
Springs : stainless steel AISI 302
Knob : nylon PA6
Inlets: 3/4" pipe union
Outlet: 3/4" pipe union
Max. operating pressure : 10 bar
Reccomended pressure : 1 + 5 bar
Max. pressure difference between inlets : 0,5 bar (if more, install check valves at inlets)
Max. inlet temperature : 100 °C
Set point : 30+65°C
Kv : 3,2 m3/h
