"Fast" Compact from ½" to 1"

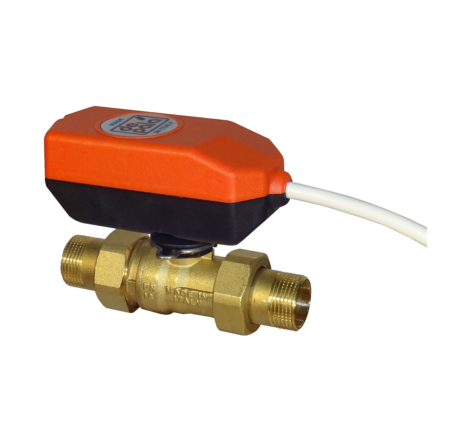

2-way zone valve

2-way zone valve
2-way zone valve

Description

All the valves of the FAST line are characterised by extreme compactness, while guaranteeing a high flow coefficient.

The reduced size of the servomotor allows the application of the valve even in manifolds with 50mm centre distance. This is a guarantee of an always careful design process, aimed at creating more effective products in line with the needs of installers, developers and manufacturers.



The threading of FAST series motorized valves is made according to ISO 228-1 (GAS Female or Male).
They are therefore suitable for all hydraulic components, fittings and pipes with threads made according to standards.



The servomotors include a gearbox with heat-treated steel gears and are proposed with the intention of offering compatibility with all valves of the FAST series with a single product.

Technical Data

BODY VALVES:


Valve body : brass CW617N (UNI 12165)

Ball : brass CW617N (nickel-chromium plated)
Seals on the ball and on the rod : PTFE and EPDM o-rings
Rod : with double EPDM o-ring and and anti-seize ring in PTFE
Nominal operating pressure : 10 bar
Maximum differential operating pressure : Δp 4 bar
Fluid temperature field : 0 °C   + 100 °C
Usable fluids : Water; water with glycol or compatible fluids with PTFE and EPDM rubber
Load loss : minimum
Coupling system : quick release ring spring


COUPLED SERVOMOTORS:


Opening / closing time : 12"
Supply Voltage : 230Vac - 24Vac
Auxiliary Switch : 1 (Free voltage signal)
Electric protection rating : IP54
Control type : 2 wires (relay inside) / 3 wires (C-NO-NC)


Request Informations

Related Product Codes

232FB:

FAST - 2-WAYS BALL VALVE DIAM. 1/2" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT.
202FB:

FAST - 2-WAYS BALL VALVE DIAM. 3/4" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT.
212FB:

FAST - 2-WAYS BALL VALVE DIAM. 1" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT.
232B:

FAST - 2-WAYS BALL VALVE DIAM. 1/2" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS
202B:

FAST - 2-WAYS BALL VALVE DIAM. 3/4" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS
212B:

FAST - 2-WAYS BALL VALVE DIAM. 1" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS
M2B:

SERVOMOTOR 3-WIRES - 1 AUX SW.  12sec FOR 2/3/4 WAYS VALVES FAST
M2C:

SERVOMOTOR 3-WIRES - 1 AUX SW.  12sec FOR 2/3/4 WAYS VALVES FAST
R2B:

SERVOMOTOR 2-WIRES - 1 AUX SW.  12sec FOR 2/3/4 WAYS VALVES FAST
R2C:

SERVOMOTOR 2-WIRES - 1 AUX SW.  12sec FOR 2/3/4 WAYS VALVES FAST   24VAC
M2B32FB:

FAST - 2-WAYS BALL VALVE DIAM. 1/2" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT. & 12" 3-WIRES MOTOR 1 AUX SW - 230VAC
M2B02FB:

FAST - 2-WAYS BALL VALVE DIAM. 3/4" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT. & 12" 3-WIRES MOTOR 1 AUX SW - 230VAC
M2B12FB:

FAST - 2-WAYS BALL VALVE DIAM. 1" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT. & 12" 3-WIRES MOTOR 1 AUX SW - 230VAC
M2C32FB:

FAST - 2-WAYS BALL VALVE DIAM. 1/2" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT. & 12" 3-WIRES MOTOR 1 AUX SW - 24VAC
M2C02FB:

FAST - 2-WAYS BALL VALVE DIAM. 3/4" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT. & 12" 3-WIRES MOTOR 1 AUX SW - 24VAC
M2C12FB:

FAST - 2-WAYS BALL VALVE DIAM. 1" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT. & 12" 3-WIRES MOTOR 1 AUX SW - 24VAC
R2B32FB:

FAST - 2-WAYS BALL VALVE DIAM. 1/2" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT. & 12" 2-WIRES MOTOR 1 AUX SW - 230VAC
R2B02FB:

FAST - 2-WAYS BALL VALVE DIAM. 3/4" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT. & 12" 2-WIRES MOTOR 1 AUX SW - 230VAC
R2B12FB:

FAST - 2-WAYS BALL VALVE DIAM. 1" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT. & 12" 2-WIRES MOTOR 1 AUX SW - 230VAC
R2C32FB:

FAST - 2-WAYS BALL VALVE DIAM. 1/2" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT. & 12" 2-WIRES MOTOR 1 AUX SW - 24VAC
R2C12FB:

FAST - 2-WAYS BALL VALVE DIAM. 1" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT. & 12" 2-WIRES MOTOR 1 AUX SW - 24VAC
M2B32B:

FAST - 2-WAYS BALL VALVE DIAM. 1/2" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS & 12" 3-WIRES MOTOR 1 AUX SW - 230VAC
R2C02FB:

FAST - 2-WAYS BALL VALVE DIAM. 3/4" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT. & 12" 2-WIRES MOTOR 1 AUX SW - 24VAC
M2B02B:

FAST - 2-WAYS BALL VALVE DIAM. 3/4" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS & 12" 3-WIRES MOTOR 1 AUX SW - 230VAC
M2B12B:

FAST - 2-WAYS BALL VALVE DIAM. 1" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS & 12" 3-WIRES MOTOR 1 AUX SW - 230VAC
M2C32B:

FAST - 2-WAYS BALL VALVE DIAM. 1/2" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS & 12" 3-WIRES MOTOR 1 AUX SW - 24VAC
M2C02B:

FAST - 2-WAYS BALL VALVE DIAM. 3/4" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS & 12" 3-WIRES MOTOR 1 AUX SW - 24VAC
M2C12B:

FAST - 2-WAYS BALL VALVE DIAM. 1" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS & 12" 3-WIRES MOTOR 1 AUX SW - 24VAC
R2B32B:

FAST - 2-WAYS BALL VALVE DIAM. 1/2" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS & 12" 2-WIRES MOTOR 1 AUX SW - 230VAC
R2B02B:

FAST - 2-WAYS BALL VALVE DIAM. 3/4" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS & 12" 2-WIRES MOTOR 1 AUX SW - 230VAC
R2B12B:

FAST - 2-WAYS BALL VALVE DIAM. 1" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS & 12" 2-WIRES MOTOR 1 AUX SW - 24VAC
R2C32B:

FAST - 2-WAYS BALL VALVE DIAM. 1/2" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS & 12" 2-WIRES MOTOR 1 AUX SW - 24VAC
R2C02B:

FAST - 2-WAYS BALL VALVE DIAM. 3/4" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS & 12" 2-WIRES MOTOR 1 AUX SW - 24VAC
R2C12B:

FAST - 2-WAYS BALL VALVE DIAM. 1" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS & 12" 2-WIRES MOTOR 1 AUX SW - 24VAC
technical support +39 0434 920466
