Description

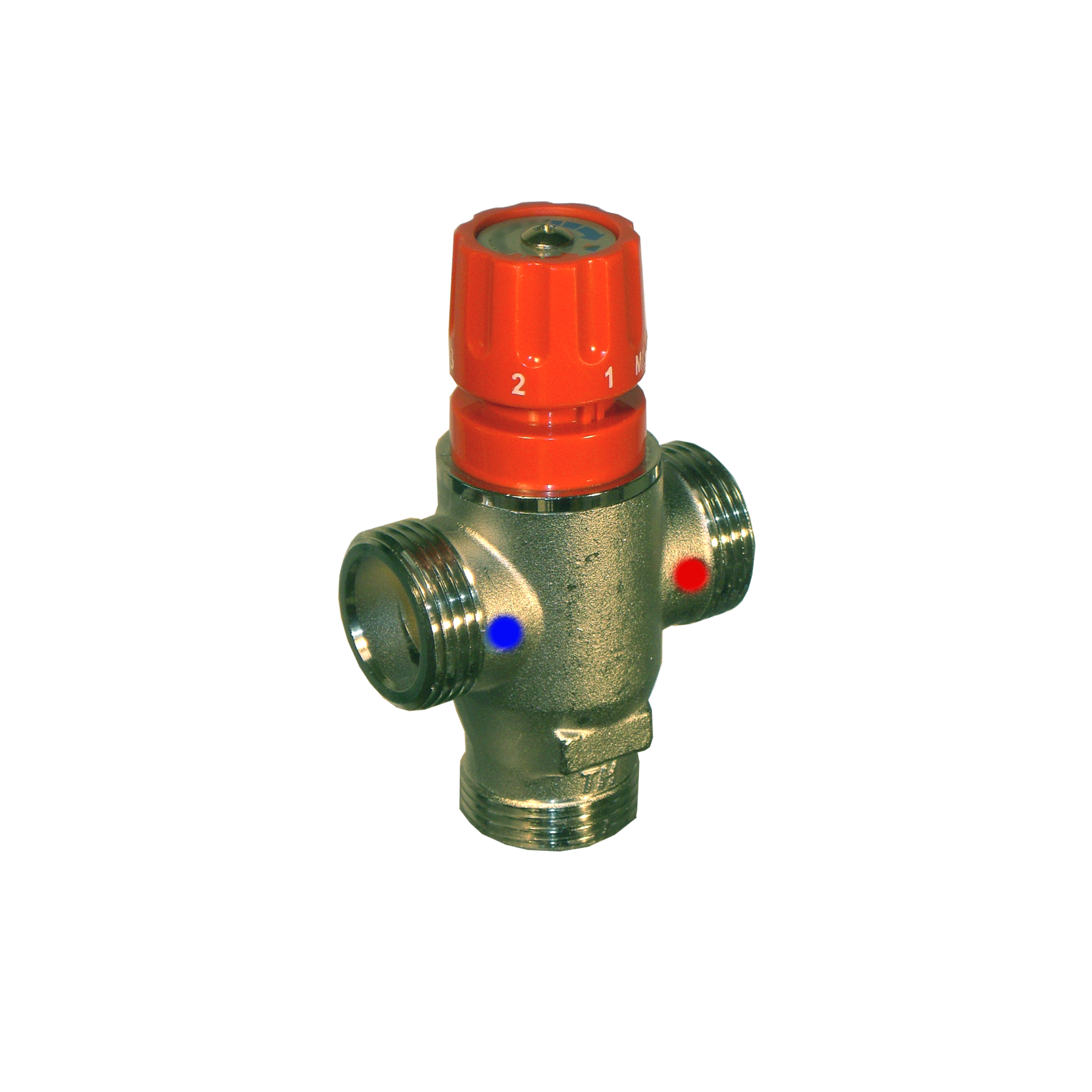

The thermostatic mixer regulates the flow temperature of the system to a preset value.
It is supplied with hot water from the heat generator and cold water from the system return.
In radiant panel systems, the temperature control made by this mixer implements the so-called "fixed point" regulation, which consists in regulating the flow temperature to a predetermined and constant value with the possibility of manually adjusting the set temperature according to the changed climatic conditions. Compared to regulation via an electronic control unit with an external and flow probe, it is a more intuitive and simple system with fewer possibilities of failure.
Technical Data
Maximum operating pressure: 10 bar
Recommended pressure: 1 -:- 5 bar
Maximum pressure difference between inlets: 0.5 bar
Max. hot water temperature: 85 °C
Setting range: 20 -:- 55 °C for MTP64 series / 20 -:- 65 °C for MTP10 series
Body: pressed brass UNI EN 12165 CW617N chrome plated and sandblasted
Shutter and internal parts: brass UNI EN 12164 CW614N
Springs: AISI 302 stainless steel
O-rings: NBR - EPDM
Knob: Nylon, PA 6
Thermo-sensitive element: waxed
Threads: gas UNI-ISO 228
