"SFERA" with Total Flow from ½" to 1" ½".

3-way T bored diverter valve

3-way T bored diverter valve
3-way T bored diverter valve

Description

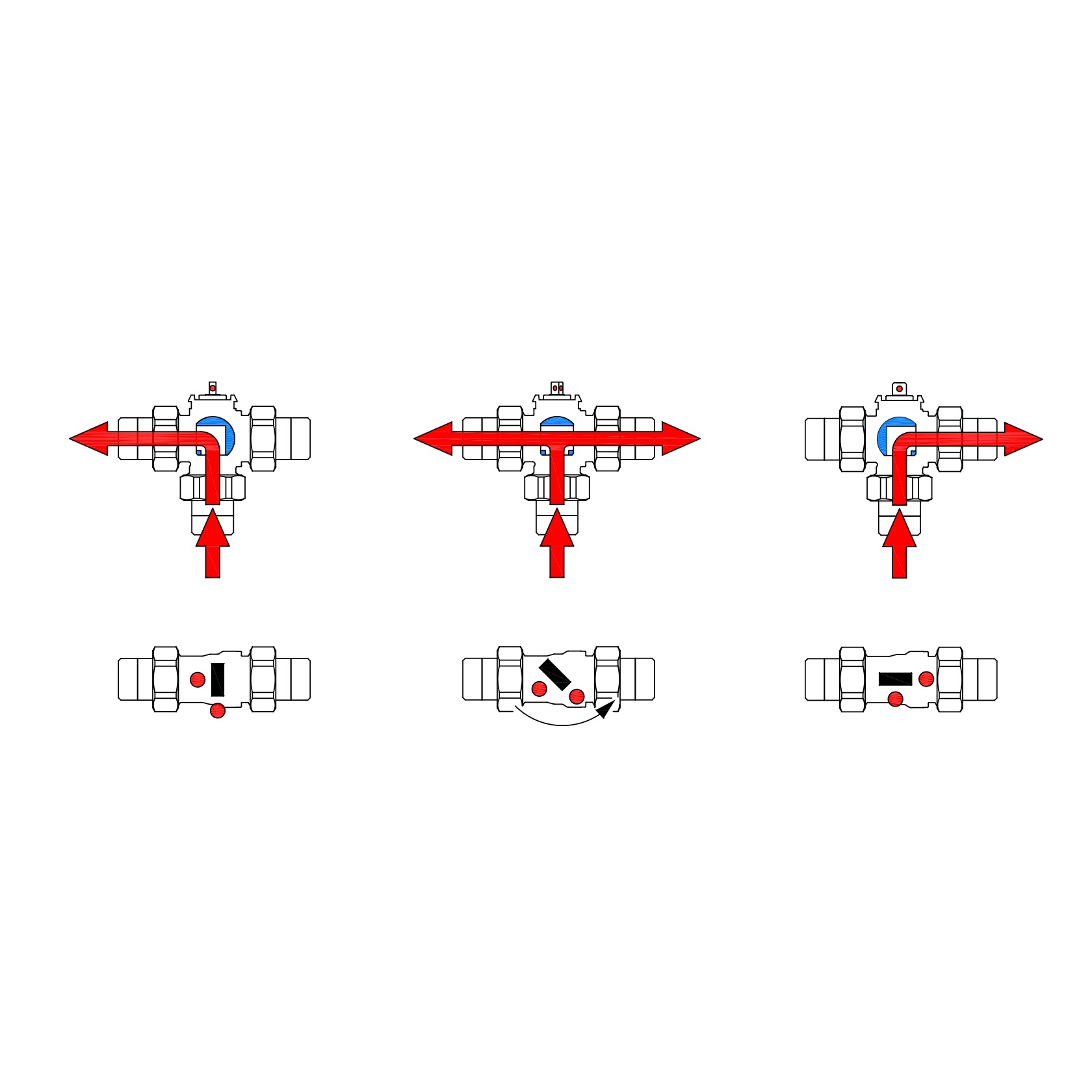

The valves are made of brass according to criteria of toughness and reliability. The full bore ball shutter guarantees minimum pressure drop and no leakage even after long periods of service. The threaded connections can be female, male or with pipe unions depending on the installation convenience. The 3-way valves have different flow configurations, adapting to the most different types of system situations.

The servomotors are equipped with a robust steel gearbox and have a pre-wired multi-core cable for easy electrical connection. De Pala actuators only absorb power during operation, unlike, for example, spring-return servomotors, and have accurate and replicable positioning.

Thanks to a steel ring on the servomotor and the special manufacturing of the valve body, coupling and uncoupling of the two components is easy, quick and tool-free.

Optionally, the servomotor can be ordered with an auxiliary contact, which is a free contact, not under voltage, useful for example to activate the boiler when the valve opens, to remotely signal the open-closed status by a light bulb, or for other functions.

On request, De Pala can supply servomotors with two auxiliary contacts, with closed contact when the valve is closed and in other variants.

Technical Data

BODY VALVE:



Body : Brass CW617N ( UNI 12165 )
Ball : Brass CW617N ( UNI 12165 ) Nickel-chromed
Ball seats : PTFE plus O-RING in EPDM
Rod : Brass CW614N ( UNI 12164 ) with double O-RING in EPDM and anti-seize ring in PTFE
Maximum working pressure : 16 bar
Maximum differential pressure: Δp = 6 bar
Fluid working temperature : 0 °C + 110 °C (for extreme values the use of a spacer is recommended)
Usable fluid : Water, glycol water (max 50%) or compatible liquids with PTFE and EPDM seals
Pressure drop : almost zero (TOTAL FLOW)
Coupling: quick coupling with spring ring



COUPLED SERVOMOTORS:



Opening / closing time:  8" - 15" - 30" - 60" - 120"
Supply Voltage: 230VAC - 24VAC - (SPECIAL TYPE : 110VAC - 12VDC - 24VDC)
Control type: 2 wires (relay inside) / 3 wires
Auxiliary switch version available
Electric protection rate: IP54

Request Informations

Related Product Codes

613 U:

ZONE BALL VALVE - 3-WAYS DIAM. 1" DEVIATING "T" BORED - PIPE-UNIONS AT.
603 U:

ZONE BALL VALVE - 3-WAYS DIAM. 3/4" DEVIATING "T" BORED - PIPE-UNIONS AT.
633 U:

ZONE BALL VALVE - 3-WAYS DIAM. 1/2" DEVIATING "T" BORED - PIPE-UNIONS AT.
643 V:

ZONE BALL VALVE - 3-WAYS DIAM. 1"1/2 DEVIATING "T" BORED - MALE ATTACHS.
623 V:

ZONE BALL VALVE - 3-WAYS DIAM. 1"1/4 DEVIATING "T" BORED - MALE ATTACH.
613 V:

ZONE BALL VALVE - 3-WAYS DIAM. 1" DEVIATING "T" BORED - MALE ATTACH.
603 V:

ZONE BALL VALVE - 3-WAYS DIAM. 3/4" DEVIATING "T" BORED - MALE ATTACH.
643 T:

ZONE BALL VALVE - 3-WAYS DIAM. 1"1/2 DEVIATING "T" BORED - FEMALE ATTACH.
623 T:

ZONE BALL VALVE - 3-WAYS DIAM. 1"1/4 DEVIATING "T" BORED - FEMALE ATTACH.
613 T:

ZONE BALL VALVE - 3-WAYS DIAM. 1" DEVIATING "T" BORED - FEMALE ATTACH.
603 T:

ZONE BALL VALVE - 3-WAYS DIAM. 3/4" DEVIATING "T" BORED - FEMALE ATTACH.
633 T:

ZONE BALL VALVE - 3-WAYS DIAM. 1/2" DEVIATING "T" BORED - FEMALE ATTACH.
623 U:

ZONE BALL VALVE - 3-WAYS DIAM. 1"1/4 DEVIATING "T" BORED - PIPE-UNIONS AT.
643 U:

ZONE BALL VALVE - 3-WAYS DIAM. 1"1/2 DEVIATING "T" BORED - PIPE-UNIONS AT.
M7A3:

SERVOMOTOR 3-WIRES NO AUX SW. - 60sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
M7S3:

SERVOMOTOR 3-WIRES NO AUX SW. - 60sec FOR 3-WAYS DEVIATING "T" BORED 24 VAC
M7A3V:

SERVOMOTOR 3-WIRES NO AUX SW. - 30sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
M7S3V:

SERVOMOTOR 3-WIRES NO AUX SW. - 30sec FOR 3-WAYS DEVIATING "T" BORED 24 VAC
M7A3W:

SERVOMOTOR 3-WIRES NO AUX SW. - 15sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
M7S3W:

SERVOMOTOR 3-WIRES NO AUX SW. - 15sec. FOR 3-WAYS DEVIATING "T" BORED 24 VAC
M7A3X:

SERVOMOTOR 3-WIRES NO AUX SW. - 8sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
M7S3X:

SERVOMOTOR 3-WIRES NO AUX SW. - 8sec. FOR 3-WAYS DEVIATING "T" BORED 24 VAC
M7B3:

SERVOMOTOR 3-WIRES - 1 AUX SW.  60sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
M7C3:

SERVOMOTOR 3-WIRES - 1 AUX SW.  60sec FOR DEV. "T" BORED/LAT/BY-PASS 24 VAC
M7B3V:

SERVOMOTOR 3-WIRES - 1 AUX SW.  30sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
M7C3V:

SERVOMOTOR 3-WIRES - 1 AUX SW.  30sec FOR 3-WAYS DEVIATING "T" BORED 24 VAC
M7B3W:

SERVOMOTOR 3-WIRES - 1 AUX SW.  15sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
M7C3W:

SERVOMOTOR 3-WIRES - 1 AUX SW.  15sec FOR 3-WAYS DEVIATING "T" BORED 24 VAC
M7B3X:

SERVOMOTOR 3-WIRES - 1 AUX SW.  8sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
M7C3X:

SERVOMOTOR 3-WIRES - 1 AUX SW.  8sec FOR 3-WAYS DEVIATING "T" BORED 24 VAC
R7A3:

SERVOMOTOR 2-WIRES NO AUX SW. - 60sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
R7S3:

SERVOMOTOR 2-WIRES NO AUX SW.  60sec FOR 3-WAYS DEVIATING "T" BORED 24 VAC
R7A3V:

SERVOMOTOR 2-WIRES NO AUX SW. - 30sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
R7S3V:

SERVOMOTOR 2-WIRES NO AUX SW.  30sec FOR 3-WAYS DEVIATING "T" BORED 24 VAC
R7A3W:

SERVOMOTOR 2-WIRES NO AUX SW.  15sec FOR 3-WAYS DEVIATING "T" BORED 230VAC
R7S3W:

SERVOMOTOR 2-WIRES NO AUX SW.  15sec FOR 3-WAYS DEVIATING "T" BORED 24 VAC
R7A3X:

SERVOMOTOR 2-WIRES NO AUX SW.  8sec FOR 3-WAYS DEVIATING "T" BORED 230VAC
R7S3X:

SERVOMOTOR 2-WIRES NO AUX SW.  8sec FOR 3-WAYS DEVIATING "T" BORED 24 VAC
R7B3:

SERVOMOTOR 2-WIRES - 1 AUX SW.  60sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
R7C3:

SERVOMOTOR 2-WIRES - 1 AUX SW.  60sec FOR DEV. "T" BORED/LAT/BY-PASS 24VAC
R7B3V:

SERVOMOTOR 2-WIRES - 1 AUX SW. 30 sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
R7C3V:

SERVOMOTOR 2-WIRES - 1 AUX SW.  30sec FOR DEV. "T" BORED/LAT/BY-PASS 24VAC
R7B3W:

SERVOMOTOR 2-WIRES - 1 AUX SW.  15sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
R7C3W:

SERVOMOTOR 2-WIRES - 1 AUX SW.  15sec FOR DEV. "T" BORED/LAT/BY-PASS 24VAC
R7B3X:

SERVOMOTOR 2-WIRES - 1 AUX SW.  8sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
R7C3X:

SERVOMOTOR 2-WIRES - 1 AUX SW.  8sec FOR DEV. "T" BORED/LAT/BY-PASS 24VAC
M7A3C12VCC:

SERVOMOTOR 3-WIRES - NO AUX SW. 25sec FOR DEV. "T" BORED/LAT/BY-PASS 12V DC DIRECT CURRENT
M7A3C24VCC:

SERVOMOTOR 3-WIRES - NO AUX SW. 50sec FOR DEV. "T" BORED/LAT/BY-PASS 24V DC DIRECT CURRENT
M7B3C12VCC:

SERVOMOTOR 3-WIRES - 1 AUX SW.  25sec FOR DEV. "T" BORED/LAT/BY-PASS 12V DC DIRECT CURRENT
M7B3C24VCC:

SERVOMOTOR 3-WIRES - 1 AUX SW.  50sec FOR DEV. "T" BORED/LAT/BY-PASS 24V DC DIRECT CURRENT
