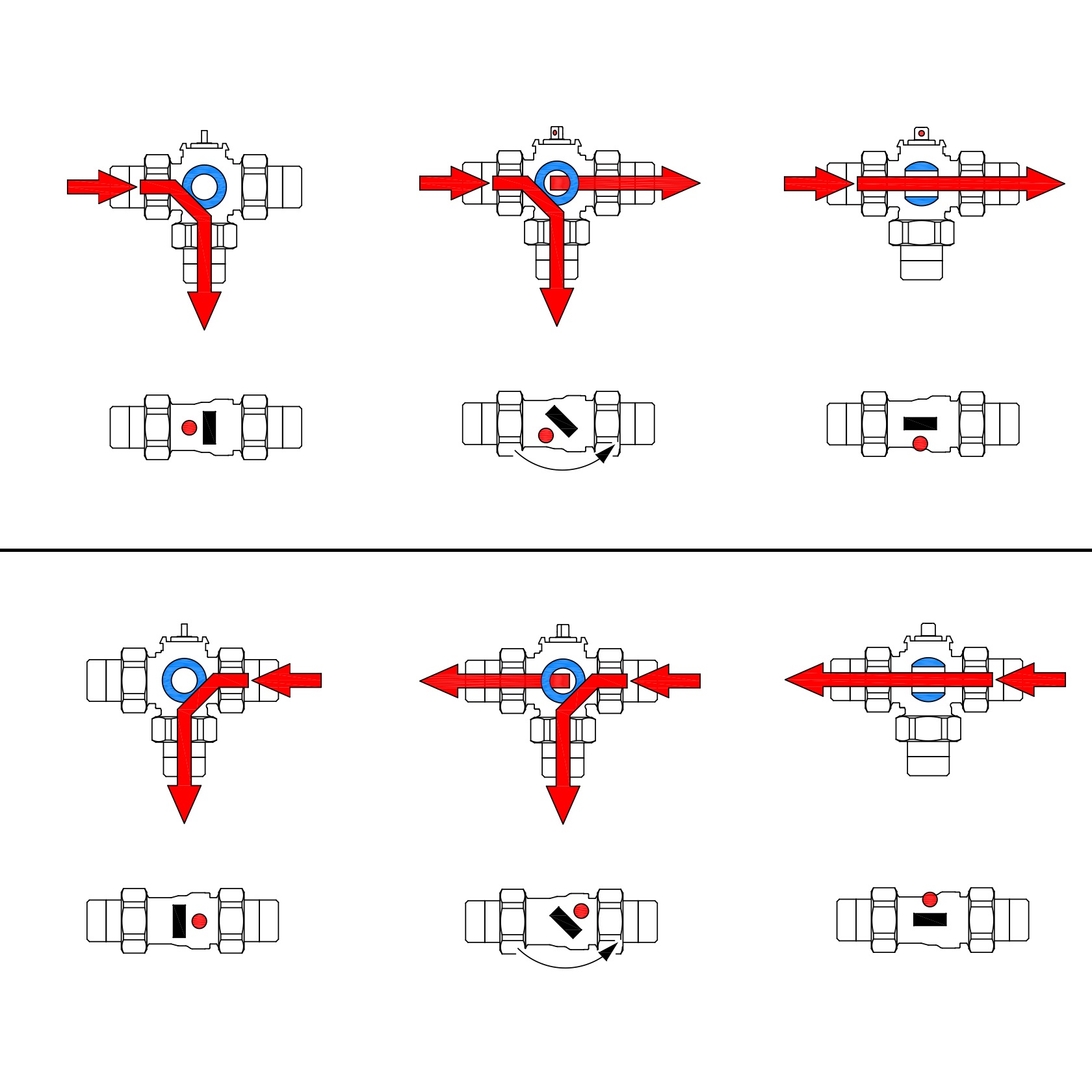

3-way lateral diverting

3-way lateral diverting
3-way lateral diverting

Description

All the valves of the FAST series are characterized by an extreme compactness, however guaranteeing a high flow coefficient.

The distance between centres of only 50mm allows the application of the servomotor even in the smallest manifolds. This is a guarantee of an always careful design process, in order to create more effective products in line with the needs of installers, designers, manufacturers.



The threading of FAST series motorized valves is made according to ISO 228-1 (GAS Female or Male).
They are therefore suitable for all hydraulic components, fittings and pipes with threads made according to standards.



The servomotors include a gearbox with heat-treated steel gears and are proposed with the intention of offering compatibility with all valves of the FAST series with a single product.

Technical Data

BODY VALVES:


Valve body : brass CW617N (UNI 12165)

Ball : brass CW617N (nickel-chromium plated)
Seals on the ball and on the rod : PTFE and EPDM o-rings
Rod : with double EPDM o-ring and and anti-seize ring in PTFE
Nominal operating pressure : 10 bar
Maximum differential operating pressure : Δp 4 bar
Fluid temperature field : 0 °C   + 100 °C
Usable fluids : Water; water with glycol or compatible fluids with PTFE and EPDM rubber
Load loss : minimum
Coupling system : quick release ring spring


COUPLED SERVOMOTORS:


Opening / closing time : 12"
Supply Voltage : 230Vac - 24Vac
Auxiliary Switch : 1 (Free voltage signal)
Electric protection rating : IP54
Control type : 2 wires (relay inside) / 3 wires (C-NO-NC)

Request Informations

Related Product Codes

M2B33BL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø1/2" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS & 12" 3-WIRES MOTOR 1 AUX SW - 230VAC
M2B03BL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø3/4" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS & 12" 3-WIRES MOTOR 1 AUX SW - 230VAC
M2B13BL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø1" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS & 12" 3-WIRES MOTOR 1 AUX SW - 230VAC
M2C33BL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø1/2" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS & 12" 3-WIRES MOTOR 1 AUX SW - 24VAC
M2C03BL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø3/4" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS & 12" 3-WIRES MOTOR 1 AUX SW - 24VAC
M2C13BL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø1" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS & 12" 3-WIRES MOTOR 1 AUX SW - 24VAC
R2B33BL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø1/2" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS & 12" 2-WIRES MOTOR 1 AUX SW - 230VAC
R2B03BL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø3/4" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS & 12" 2-WIRES MOTOR 1 AUX SW - 230VAC
R2B13BL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø1" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS & 12" 2-WIRES MOTOR 1 AUX SW - 230VAC
R2C33BL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø1/2" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS & 12" 2-WIRES MOTOR 1 AUX SW - 24VAC
R2C03BL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø3/4" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS & 12" 2-WIRES MOTOR 1 AUX SW - 24VAC
R2C13BL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø1" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS & 12" 2-WIRES MOTOR 1 AUX SW - 24VAC
R2C13FBL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø1" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT. & 12" 2-WIRES MOTOR 1 AUX SW - 24VAC
R2C03FBL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø3/4" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT. & 12" 2-WIRES MOTOR 1 AUX SW - 24VAC
R2C33FBL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø1/2" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT. & 12" 2-WIRES MOTOR 1 AUX SW - 24VAC
R2B13FBL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø1" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT. & 12" 2-WIRES MOTOR 1 AUX SW - 230VAC
R2B03FBL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø3/4" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT. & 12" 2-WIRES MOTOR 1 AUX SW - 230VAC
R2B33FBL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø1/2" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT. & 12" 2-WIRES MOTOR 1 AUX SW - 230VAC
M2C13FBL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø1" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT. & 12" 3-WIRES MOTOR 1 AUX SW - 24VAC
M2C03FBL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø3/4" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT. & 12" 3-WIRES MOTOR 1 AUX SW - 24VAC
M2C33FBL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø1/2" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT. & 12" 3-WIRES MOTOR 1 AUX SW - 24VAC
M2B13FBL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø1" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT. & 12" 3-WIRES MOTOR 1 AUX SW - 230VAC
M2B03FBL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø3/4" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT. & 12" 3-WIRES MOTOR 1 AUX SW - 230VAC
M2B33FBL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø1/2" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT. & 12" 3-WIRES MOTOR 1 AUX SW - 230VAC
R2C:

SERVOMOTOR 2-WIRES - 1 AUX SW.  12sec FOR 2/3/4 WAYS VALVES FAST   24VAC
R2B:

SERVOMOTOR 2-WIRES - 1 AUX SW.  12sec FOR 2/3/4 WAYS VALVES FAST
M2C:

SERVOMOTOR 3-WIRES - 1 AUX SW.  12sec FOR 2/3/4 WAYS VALVES FAST
M2B:

SERVOMOTOR 3-WIRES - 1 AUX SW.  12sec FOR 2/3/4 WAYS VALVES FAST
213BL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø 1" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS
203BL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø3/4" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS
233BL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø1/2" ON/OFF TYPE - PIPE-UNIONS ATTACHMENTS
213FBL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø 1" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT.
203FBL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø3/4" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT.
233FBL:

FAST - 3-WAYS LAT. DIVERT VALVE Ø1/2" ON/OFF TYPE - FEMALE/PIPE-UNIONS ATT.
