IP65 "FRIGO" with Total Passage from ½" to 1" ½

Nickel-plated 2-way zone valve

Nickel-plated 2-way zone valve
Nickel-plated 2-way zone valve

Description

The valves of the Frigo De Pala line in nickel-plated brass are designed and manufactured specifically for use in refrigeration and in particularly humid and severe environments.



The full bore ball shutter guarantees almost no load losses and total absence of leakage, even after long periods of use.



The threaded connections can be chosen at will between union, female, female-union and male; the 3 ways have different flow configurations to meet the most disparate system configurations and guarantee each installer the right solution.



The practical pre-formed insulation shells in cross-linked polyethylene and the spacers for the servomotors allow rapid installation, simplifying insulation operations and drastically reducing installation times.



All servomotors in the Frigo range are carefully sealed to achieve an electrical protection rating of IP65 and are tested to the most extreme standards in the industry.

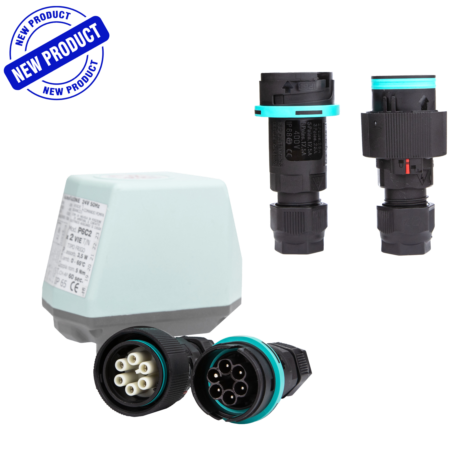

The electrical connection is made without opening the casing, thus avoiding compromising the sealing. In fact, it is possible to put the servomotor into operation by connecting the pre-wired cable, or by using the innovative IP68 plug-socket connector available among the most requested accessories.



All De Pala servomotors absorb current only during operation, unlike, for example, servomotors with spring return. As a result, service life is exponentially extended. Their positioning is precise, repeatable and accurate.

Technical Data

VALVE BODY:



Body : Brass CW617N ( UNI 12165 ) Nickel-plated
Ball : Brass CW617N ( UNI 12165 ) Nickel plated-chrome plated
Ball seats : PTFE plus O-RING in EPDM
Rod : Brass CW614N ( UNI 12164 ) with double O-RING in EPDM and anti-seize ring in PTFE
Maximum working pressure : 16 bar
Maximum differential pressure: Δp = 6 bar
Fluid working temperature : -15 °C + 110 °C (for extreme values the use of a spacer is recommended)
Usable fluid : Water, glycol water or compatible liquids with PTFE and EPDM seals
Pressure drop: almost zero (TOTAL FLOW)
Coupling: quick coupling with ring spring



COUPLED SERVOMOTORS:



Opening / closing times: 8" - 15" - 30" - 60" - 120"
Available voltages: 230VAC - 24VAC (12VCC and 24VCC on request)
Control type: 2-wire (with built-in relay) / 3-wire (deviating)
Versions with one, two and without auxiliary contacts.
Electrical protection class: IP65



Heating resistor on request.

Request Informations

Related Product Codes

612FBND:

ZONE BALL VALVE - 2-WAYS DIAM. 1" ON/OFF TYPE - FEMALE/PIPE - NICKEL PLT SHAFT M7-R7-P7-T7 CONNECTION
602FBND:

ZONE BALL VALVE - 2-WAYS DIAM. 3/4" ON/OFF TYPE - FEMALE/PIPE - NICKEL PLT SHAFT M7-R7-P7-T7 CONNECTION
632FBND:

ZONE BALL VALVE - 2-WAYS DIAM. 1/2" ON/OFF TYPE - FEMALE/PIPE - NICKEL PLT SHAFT M7-R7-P7-T7 CONNECTION
642MND:

ZONE BALL VALVE - 2-WAYS DIAM. 1"1/2 ON/OFF TYPE - MALE ATTS - NICKEL PLT SHAFT M7-R7-P7-T7 CONNECTION
622MND:

ZONE BALL VALVE - 2-WAYS DIAM. 1"1/4 ON/OFF TYPE - MALE ATTS - NICKEL PLT SHAFT M7-R7-P7-T7 CONNECTION
612MND:

ZONE BALL VALVE - 2-WAYS DIAM. 1" ON/OFF TYPE - MALE ATTS - NICKEL PLT SHAFT M7-R7-P7-T7 CONNECTION
602MND:

ZONE BALL VALVE - 2-WAYS DIAM. 3/4" ON/OFF TYPE - MALE ATTS - NICKEL PLT SHAFT M7-R7-P7-T7 CONNECTION
642FND:

ZONE BALL VALVE - 2-WAYS DIAM. 1"1/2 ON/OFF TYPE - FEMALE ATTS - NICKEL PLT SHAFT M7-R7-P7-T7 CONNECTION
622FND:

ZONE BALL VALVE - 2-WAYS DIAM. 1"1/4 ON/OFF TYPE - FEMALE ATTS - NICKEL PLT SHAFT M7-R7-P7-T7 CONNECTION
612FND:

ZONE BALL VALVE - 2-WAYS DIAM. 1" ON/OFF TYPE - FEMALE ATTS - NICKEL PLT SHAFT M7-R7-P7-T7 CONNECTION
602FND:

ZONE BALL VALVE - 2-WAYS DIAM. 3/4" ON/OFF TYPE - FEMALE ATTACH. NICKEL SHAFT M7-R7-P7-T7 CONNECTION
632FND:

ZONE BALL VALVE - 2-WAYS DIAM. 1/2" ON/OFF TYPE - FEMALE ATTACH. NICKEL SHAFT M7-R7-P7-T7 CONNECTION
622FBND:

ZONE BALL VALVE - 2-WAYS DIAM. 1"1/4 ON/OFF TYPE - FEMALE/PIPE - NICKEL PLT SHAFT M7-R7-P7-T7 CONNECTION
642FBND:

ZONE BALL VALVE - 2-WAYS DIAM. 1"1/2 ON/OFF TYPE - FEMALE/PIPE - NICKEL PLT SHAFT M7-R7-P7-T7 CONNECTION
632BND:

ZONE BALL VALVE - 2-WAYS DIAM. 1/2" ON/OFF TYPE - PIPE UNIONS  NICKEL SHAFT M7-R7-P7-T7 CONNECTION
602BND:

ZONE BALL VALVE - 2-WAYS DIAM. 3/4" ON/OFF TYPE - PIPE UNIONS  NICKEL SHAFT M7-R7-P7-T7 CONNECTION
612BND:

ZONE BALL VALVE - 2-WAYS DIAM. 1" ON/OFF TYPE - PIPE UNIONS  NICKEL SHAFT M7-R7-P7-T7 CONNECTION
622BND:

ZONE BALL VALVE - 2-WAYS DIAM. 1"1/4 ON/OFF TYPE - PIPE UNIONS  NICKEL SHAFT M7-R7-P7-T7 CONNECTION
642BND:

ZONE BALL VALVE - 2-WAYS DIAM. 1"1/2 ON/OFF TYPE - PIPE UNIONS  NICKEL SHAFT M7-R7-P7-T7 CONNECTION
P7A3:

FREEZE MOTOR 3-WIRES NO AUX SW. 60sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
P7S3:

FREEZE MOTOR 3-WIRES NO AUX SW. 60sec FOR DEV. "T" BORED/LAT/BY-PASS 24 VAC
P7A3W:

FREEZE MOTOR 3-WIRES NO AUX SW. 15sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
P7S3W:

FREEZE MOTOR 3-WIRES NO AUX SW. 15sec FOR DEV. "T" BORED/LAT/BY-PASS 24 VAC
P7A3X:

FREEZE MOTOR 3-WIRES NO AUX SW. 8sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
P7S3X:

FREEZE MOTOR 3-WIRES NO AUX SW. 8sec FOR DEV. "T" BORED/LAT/BY-PASS 24 VAC
P7B3:

FREEZE MOTOR 3-WIRES - 1 AUX SW 60sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
P7C3:

FREEZE MOTOR 3-WIRES - 1 AUX SW 60sec FOR DEV. "T" BORED/LAT/BY-PASS 24VAC
P7B3W:

FREEZE MOTOR 3-WIRES - 1 AUX SW 15sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
P7C3W:

FREEZE MOTOR 3-WIRES - 1 AUX SW 15sec FOR DEV. "T" BORED/LAT/BY-PASS 24VAC
P7B3X:

FREEZE MOTOR 3-WIRES - 1 AUX SW 8sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
P7C3X:

FREEZE MOTOR 3-WIRES - 1 AUX SW 8sec FOR DEV. "T" BORED/LAT/BY-PASS 24VAC
P7X3:

FREEZE MOTOR 3-WIRES - 2 AUX SW 60sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC AUX. SWITCH IN OPEN AND CLOSED POS.
P7Y3:

FREEZE MOTOR 3-WIRES - 2 AUX.SW 60sec FOR DEV. "T" BORED/LAT/BY-PASS 24VAC AUX. SWITCH IN OPEN & CLOSED POSITION
P7X3W:

FREEZE MOTOR 3-WIRES - 2 AUX SW 15sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC AUX. SWITCH IN OPEN AND CLOSED POS.
P7Y3W:

FREEZE MOTOR 3-WIRES - 2 AUX.SW 15sec FOR DEV. "T" BORED/LAT/BY-PASS 24VAC AUX. SWITCH IN OPEN & CLOSED POSITION
P7X3X:

FREEZE MOTOR 3-WIRES - 2 AUX SW 8sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC AUX. SWITCH IN OPEN AND CLOSED POS.
P7Y3X:

FREEZE MOTOR 3-WIRES - 2 AUX.SW 8sec FOR DEV. "T" BORED/LAT/BY-PASS 24VAC AUX. SWITCH IN OPEN & CLOSED POSITION
T7A3:

FREEZE MOTOR 2-WIRES NO AUX SW. 60sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
T7S3:

FREEZE MOTOR 2-WIRES NO AUX SW. 60sec FOR DEV. "T" BORED/LAT/BY-PASS 24 VAC
T7A3W:

FREEZE MOTOR 2-WIRES NO AUX SW. 15sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
T7S3W:

FREEZE MOTOR 2-WIRES NO AUX SW. 15sec FOR DEV. "T" BORED/LAT/BY-PASS 24 VAC
T7A3X:

FREEZE MOTOR 2-WIRES NO AUX SW. 8sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
T7S3X:

FREEZE MOTOR 2-WIRES NO AUX SW. 8sec FOR DEV. "T" BORED/LAT/BY-PASS 24 VAC
T7B3:

FREEZE MOTOR 2-WIRES - 1 AUX SW.60sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
T7C3:

FREEZE MOTOR 2-WIRES - 1 AUX SW.60sec FOR DEV. "T" BORED/LAT/BY-PASS 24VAC
T7B3W:

FREEZE MOTOR 2-WIRES - 1 AUX SW.15sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
T7C3W:

FREEZE MOTOR 2-WIRES - 1 AUX SW.15sec FOR DEV. "T" BORED/LAT/BY-PASS 24VAC
T7B3X:

FREEZE MOTOR 2-WIRES - 1 AUX SW.8sec FOR DEV. "T" BORED/LAT/BY-PASS 230VAC
T7C3X:

FREEZE MOTOR 2-WIRES - 1 AUX SW.8sec FOR DEV. "T" BORED/LAT/BY-PASS 24VAC
